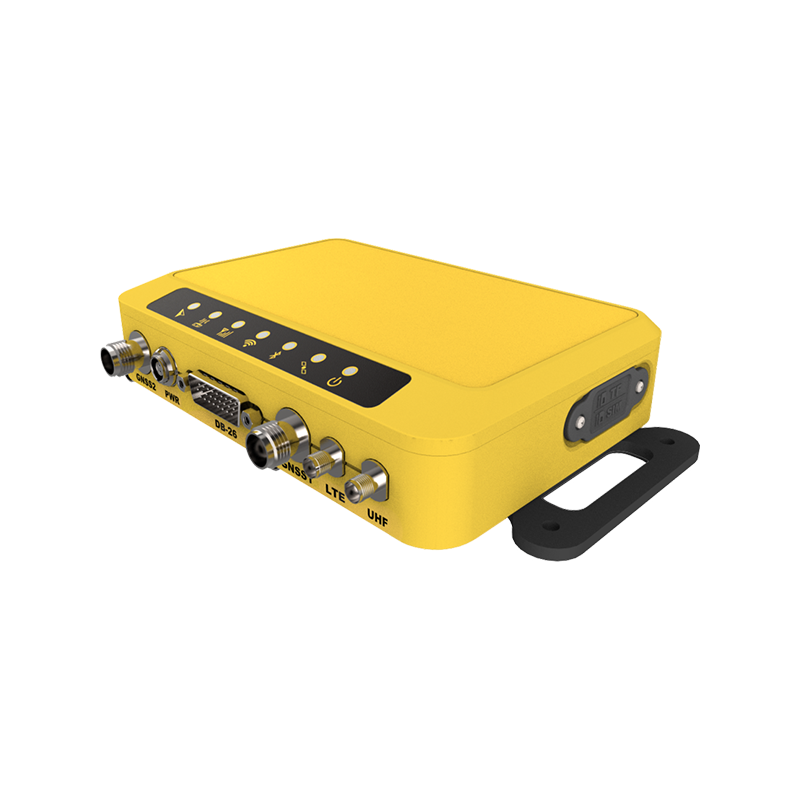

M1G2

The M1G2 high-precision GNSS Receiver is characterized by small size, complete functions, and multiple interfaces, which can be used as high-precision GNSS receiver for engineering and monitoring purposes

相关产品




Support remote configuration of M1G2

It can bind any changing IP address to a fixed secondary domain name, use this fixed domain name to access or log in the M1G2 and configure it remotely



Web UI management platform

The platform supports WIFI mode connection, Users can monitor the receiver status and configure it via the internal Web UI management platform.



Support custom coordinate system output

M1G2 has a built-in coordinate conversion algorithm, which can output latitude and longitude coordinates or plane projection coordinates according to user needs. Secondary development is convenient and efficient

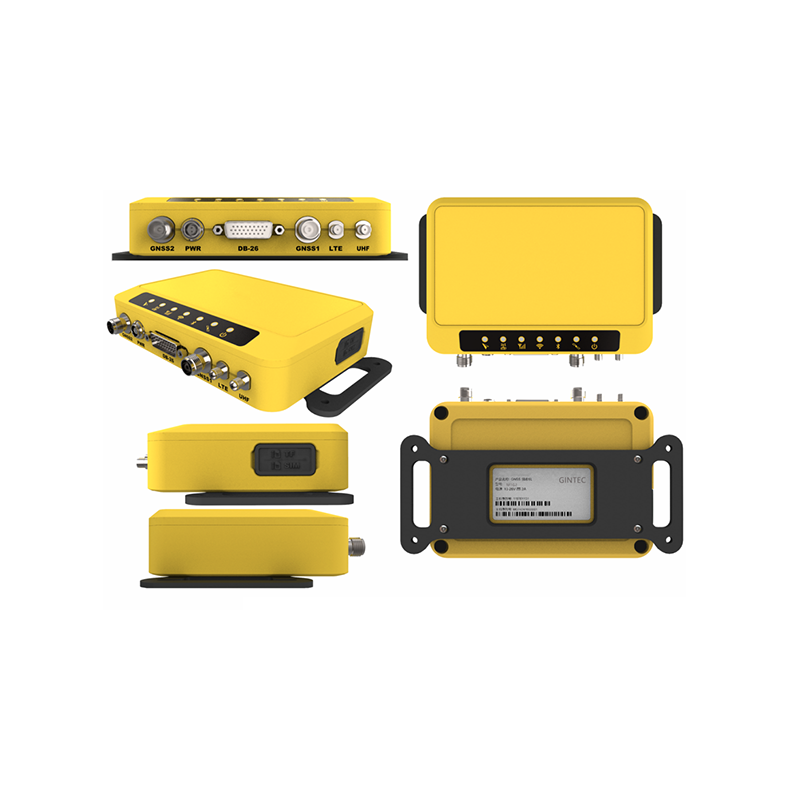

Support multiple cable ports:

GNSS Antenna port/LTE/UHF/PWR

D-SUB 26 interfaces: RS232/485, 1PPS, USB, EVENT, CAN, 100M Ethernet, support multiple interfaces to synchronize with other devices.



Support multiple data output modes

Support network, mobile network, Bluetooth, WIFI, serial port and other ways to output location data, data acquisition is simple and efficient



Solid and reliable structural design

It is designed with aluminum alloy shell, which can resist 1.5m free drop and realize the dust and water proof grade of IP67.The internal structure is designed in a simple and modular way to ensure normal operation under severe vibration working conditions.



Separate Monitor Server and Client software

The two software are separate, so they can be set up and installed separately; this can avoid error operations and different format files be exported by different software.



7x24 hours of continuously monitoring

Conduct 7×24 real-time difference processing on the original GPS data, and conduct deformation monitoring without interruption



Support multiple stations

The software supports the setting of multiple base stations. The known base stations corresponding to the monitoring points can be flexibly set



Support automatic alarm

It can send an alert via E-mail or a short message



Multiple data formats for export

The displacement deformation data of the monitoring station can be exported in “CSV”, ”HTML” and “DAT” format.
