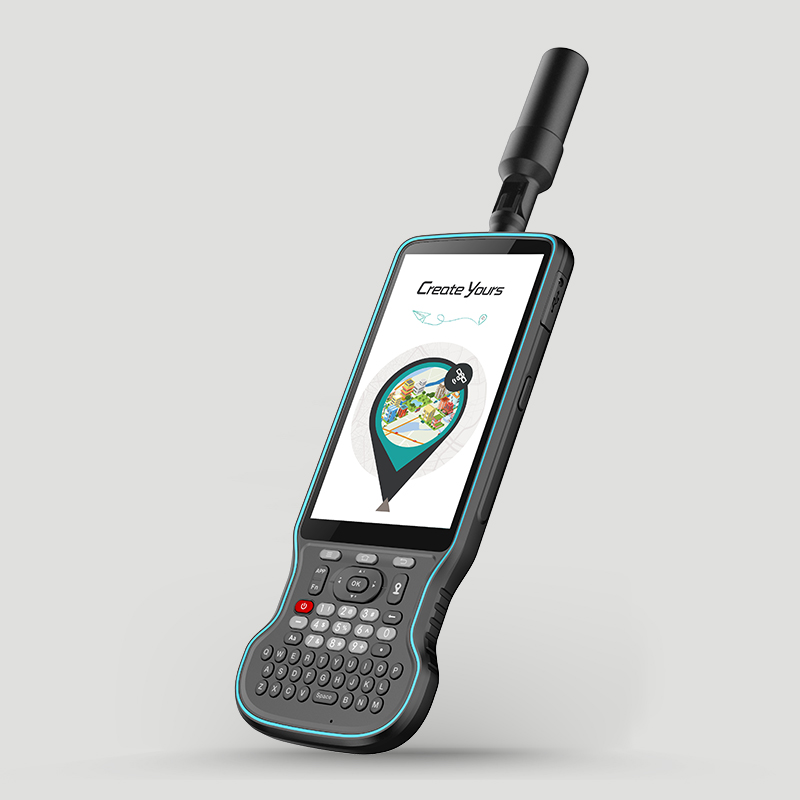

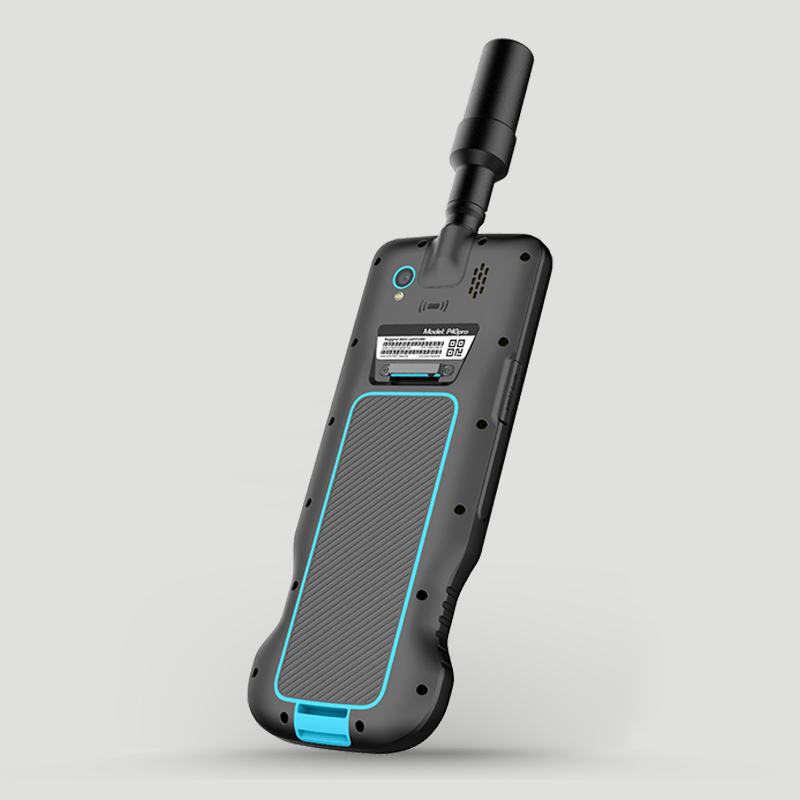

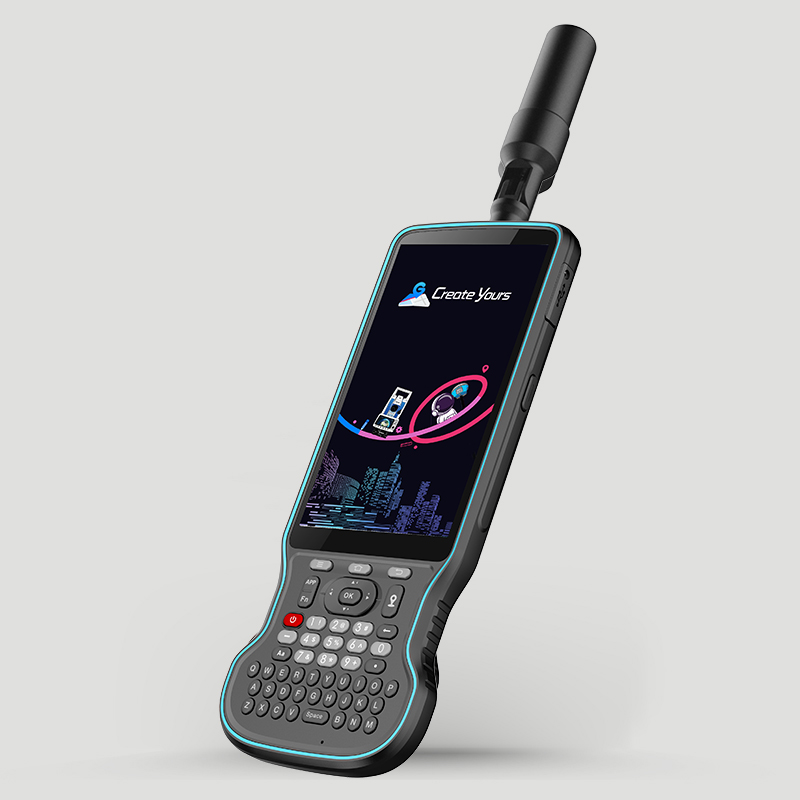

P40pro
- A receiver suitable for GIS and survey scenarios.
In the GIS domain, P40Pro is a paragon of precision. Powered by an industrial - grade chip, it efficiently processes complex geographical data, ensuring seamless GIS operations. Its high - precision centimeter - level positioning, accurate to ±2 cm, excels in field surveys and data collection, providing error - free raw data for GIS mapping and analysis, meeting the industry's strict accuracy standards.
Key Features
Specifications
- 8-Core 2.0GHz Brand-New Industrial Processor
- 5.5-inch 1080P Sunlight Readable screen
- 4GB(RAM)+64GB(ROM) DDR4 High-Speed Memory
- The 4-pin RS232 on the back provides support
- Corning Gorilla Glass
- 9000mAh 22h Long-lasting Battery life
- 120 dB High-Fidelity Loudspeaker
- 1.5-Meter Drop Resistance
- Multi-Frequency GNSS board with 1408 channels
- PPP: B2b/HAS
- IP68
| System | |
| Operating system | Android 10 gms |
| CPU | octa-core 2.0 GHz |
| RAM | 4 GB SDRAM |
| Flash memory | 64 GB |
| Memory card | MicroSDHC up to 256 GB |
| Physical | |
| Size(L × W × H) | 226.3*90.6*16.9（mm) |
| Weight | 412g （with battery） |
| Environment |
Operating: -20°C to + 65°C (-4°F to +149°F) Storage: -30°C to + 70°C (-22°F to +158°F) |
| Dust and water proof |
IP68 |
| Humidity |
5% ~ 95% (non-condensing) |
| Shock and vibration |
1.5m Drop Resistance (4 Corners, Six Sides) Marble |
| Display |
5.5" IPS LTPS LCD capacitive multi-touch 1920 × 1080 pixels HD+ 401 ppi |
| Keypad |
Corti key |
|
RTK GNSS |
|
| Channel |
1408 |
| Constellation |
BDS: B1I, B2I, B3I, B1C, B2a, B2b GPS: L1C/A, L1C, L2P (Y), L2C, L5 GLONASS: L1, L2 QZSS: L1, L2, L5, L6* SBAS*: L1, L5 |
| RTK |
2 cm HRMS |
| SBAS |
< 1 m HRMS |
| PPP：B2b/E6 HAS |
Support |
|
Sensors and Multimedia |
|
| Camera |
13 MP Primary Camera, supporting high-speed autofocus and AR measurement. |
| G-sensor |
Support |
| Gyroscope |
Support |
| E-compass |
Support |
| Light sensor |
Support |
| Speaker |
120dB High-Fidelity Speaker |
| Microphone |
Support |
|
Communications |
|
| SIM Card Type |
Nano-SIM card Dual SIM, Single Standby |
| Network modem |
GSM: 850/900/1800/1900 WCDMA: B1/B2/B4/B5/B8 LTE-TDD: B34/B38/39/B40/B41 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B26/B28/B66 |
| Wi-Fi |
802.11 a/b/g/n/ac access point mode (2.4 G / 5G) |
| Bluetooth ® |
5.0 |
| USB |
Type C, OTG supported |
| NFC |
Support |
|
Electrical |
|
| Li-ion battery capacity |
9000 mAh Working Hours (1) 18-22 Hours* Typical Value |
| Charging time |
3h (90%) |
|
Standard Accessories |
|
|
A/C charger USB cable Stylus Handstrap |
|
|
Field Software |
|
|
CreateYours |
|
|
Certifications |
|
|
CCC SRRC ，CE, FCC ，UN38.3，MSDS |
|
