G40Pro revolutionizes traditional surveying with high-precision CAD and dual-camera integration, boosting foundational planning efficiency by 40% and delivering an all-in-one "design-measurement-verification" solution for cross-domain projects including transportation, energy, and landscaping. Its breakthrough AR Stakeout feature enables:
Centimeter-level overlays of road centerlines and cross-sections onto real-world terrain, significantly accelerating road surveying and construction verification. Users bypass coordinate file pre-processing by directly importing CAD drawings for complex geometric staking, while integrated online maps and AR guidelines streamline operations.

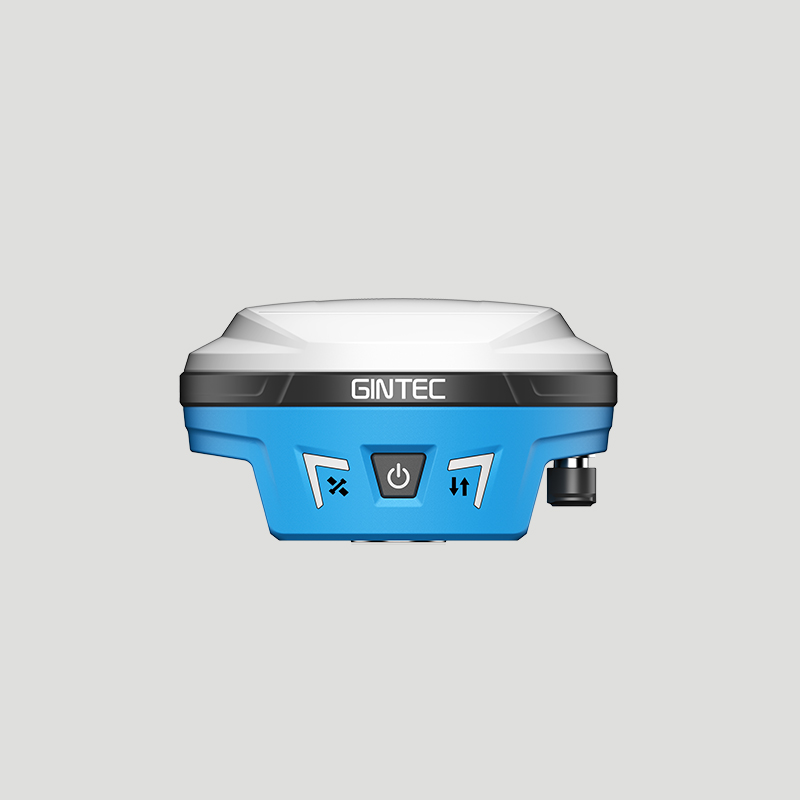

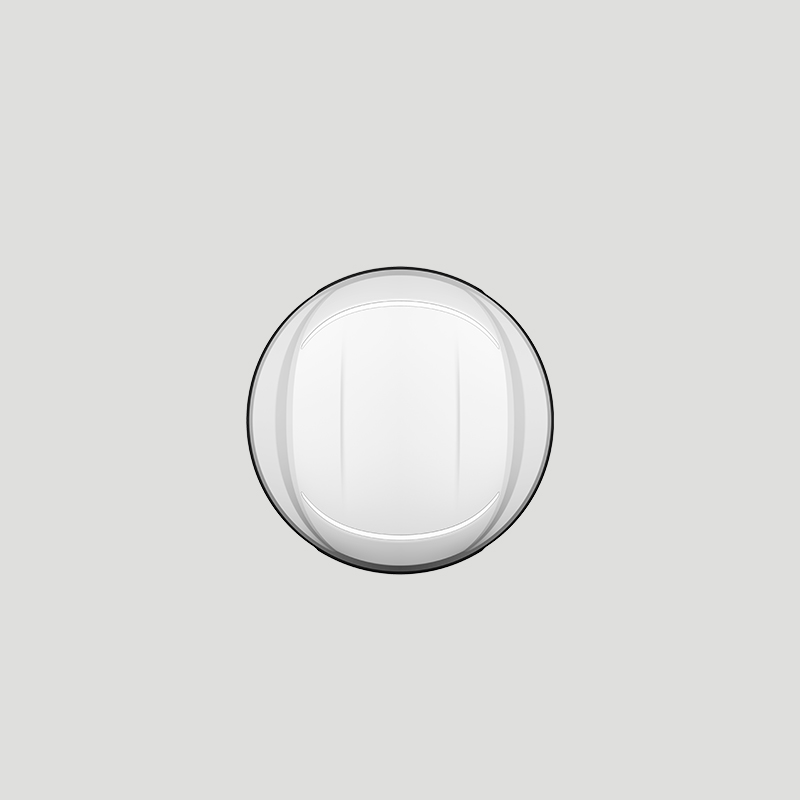

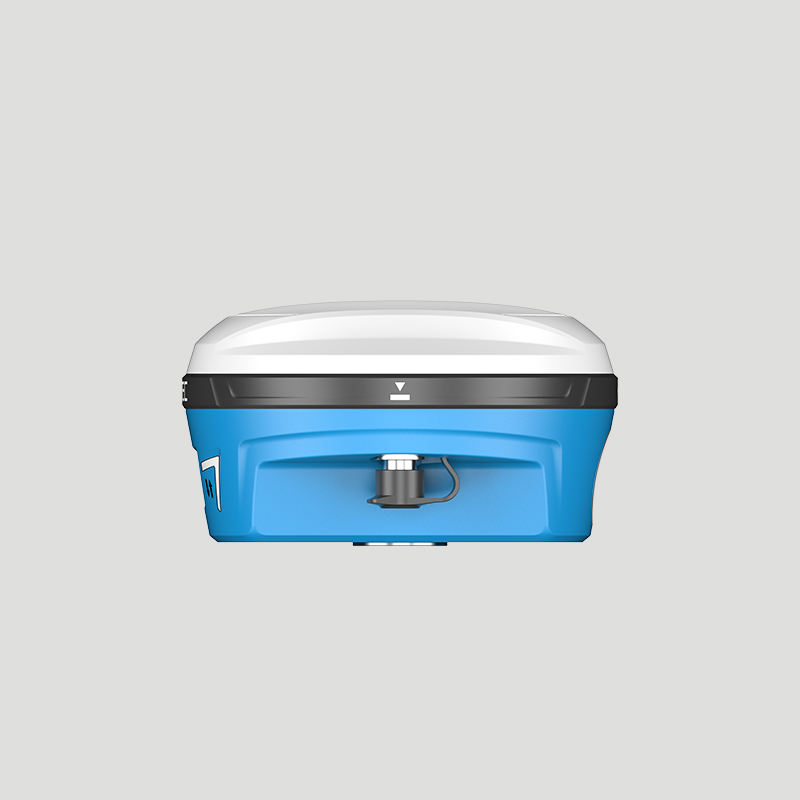

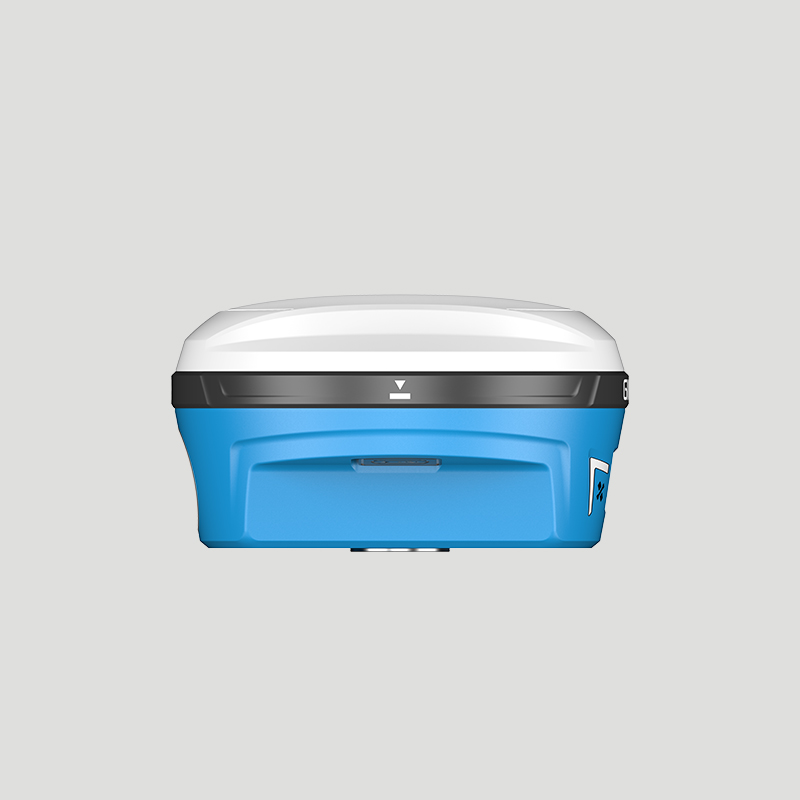

Streamlined Palm-Sized Visual-Inertial RTK
· Power and Portability, Perfected.
· 692g. Full-featured (GNSS, Auto-IMU, cameras). Half the size. Double the efficiency.
· Ideal for the field: where durability meets real-world agility.
Endurance Engineered for Pros
· Extreme battery life. Zero anxiety.
· Rapid recharge. Reduced downtime.
· Unwavering reliability for non-stop field operations
Up to 120° Tilt
· Maintain high accuracy beyond traditional tilt limitations.
· Fifth-gen inertial navigation compensates for extreme instrument angles.
· Confidently measure on slopes, embankments and complex structures.
New Upgraded Radio Module
· Robust performantce minimizes interruptions for accurate data transmission.
· Support GINTECWORK and 18+ protocols to meet diverse needs.
· Up to 7 kilometers for reliable long-distance communication.
GALILEO HAS & BDS PPP
· Access Galileo's free high-precision HAS via E6-B signal worldwide.
· Utilize BDS PPP corrections at no additional cost in coverage zones.
· Eliminate subscription fees while maintaining premium accuracy.

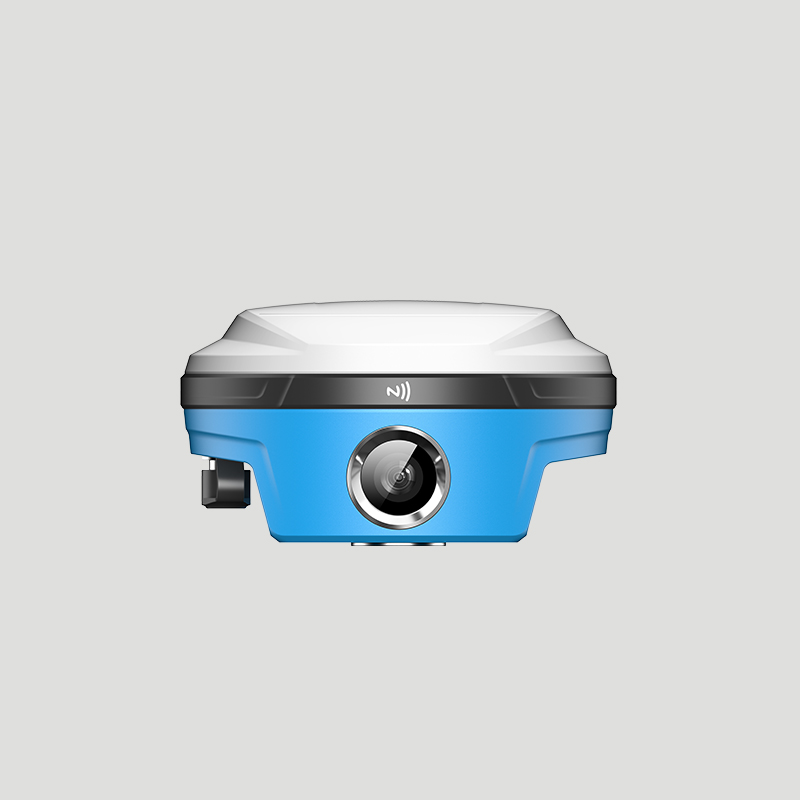

Starlight Vision
· Adaptive exposure automatically optimizes for low-light conditions.
· Capture survey-grade points well .
· Enhanced dual-camera system boosts GNSS availability for efficient work.
| Positioning | |
| Channels | 1408 |
| GPS | L1CIA,L1C,L2P(Y),L2C,L5 |
| GLONASS | G1,G2,G3 |
| BDS | B11,B21,B31,B1C,B2a,B2b |
| GALILEO | E1,E5a,E5b,E6 |
| QZSS | L1,L2C,L5,L6 |
| NAVIC(IRNSS) | L5 |
| SBAS | L1C/A |
| PPP | B2B-PPP | E6-HAS |
| Data Update Frequency | 50HZ |
| Positioning Frequency | 1Hz 2Hz 5Hz 10Hz 20Hz 50Hz |
| Cold Start Time | <12s |
| lnitialization Time | <5s |
| lnitialization Confidence | >99.9% |
| Measurement Accuracy | |
| Static Mode Accuracy | H:+2.5mm+0.5ppm V:+5.0mm+0.5ppm |
| Single Point Solution Accuracy | H:1.5m V:2.5m |
| Differential Solution Accuracy | H:0.4m V:0.8m |
| RTK Accuracy | H:+8.0mm+1ppm V:+15.0mm+1ppm |
| Time Accuracy | 20ns |
| Tilt Measurement Accuracy | ≤2.5cm within 120° |
| Physical Properties | |
| Shell Material | Magnesium-Aluminum Alloy |
| Weight | 692g |
| Dimensions | Φ124*69.5mm |
| Button | Power Button |
| Indicator Lights | Satellite Signal Light, Data Transmission Light, Current Battery Light |
| Power | |
| Battery Life | Static 40h,Rover 25h,Base 20h |
| Power Supply | Built-in Li-ion 9V/2A MAX18W 3.6V_9800mAh |
| System | |
| Operating System | Linux |
| Memory | 8G |
| Data Transmission | Bluetooth/WIFI/Radio |
| Bluetooth | V5.0,BLE |
| WIFI | 802.11a/b/g/n |
| Radio Power | 1W |
| Radio Frequency | 410-470MHz |
| Air Baud Rate | 19200,9600,4800 |
| Supported Protocols | Gintec Work,TrimTalk450s(T), TrimMark III, SOUTH, PCC-EOT, Hi-target, Satel, Farlink, etc. |
| Supported Languages | Chinese, English,Polish, Turkish, Korean, Indonesian, Spanish, Telugu, Russian, etc. |

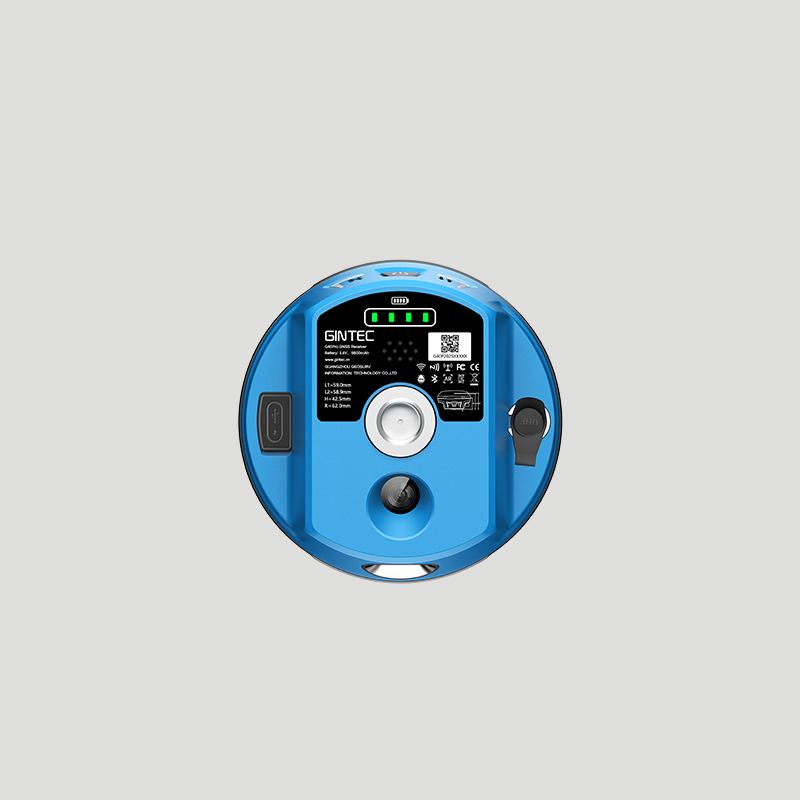

| Camera | |
| Number of Lenses | 2 |
| Front Lens Field of View | 83.4° |
| Front Sensor Pixel | 2 Mega Pixel |
| Front Camera Focal Length | 5m |
| Front Sensor Resolution | 1920*1080 |
| Bottom Lens Field of View | 83.4° |
| Bottom Sensor Pixel | 2 Mega Pixel |
| Bottom Camera Focal Length | 2m |
| Bottom Sensor Resolution | 1920*1080 |
| Environment | |
| Operation Temperature | -30℃~+65℃ |
| Stock Temperature | -40℃~+80℃ |
| Waterproof Dustproof | IP68 |
| Operating Humidity | 99.9% non-condensing |
