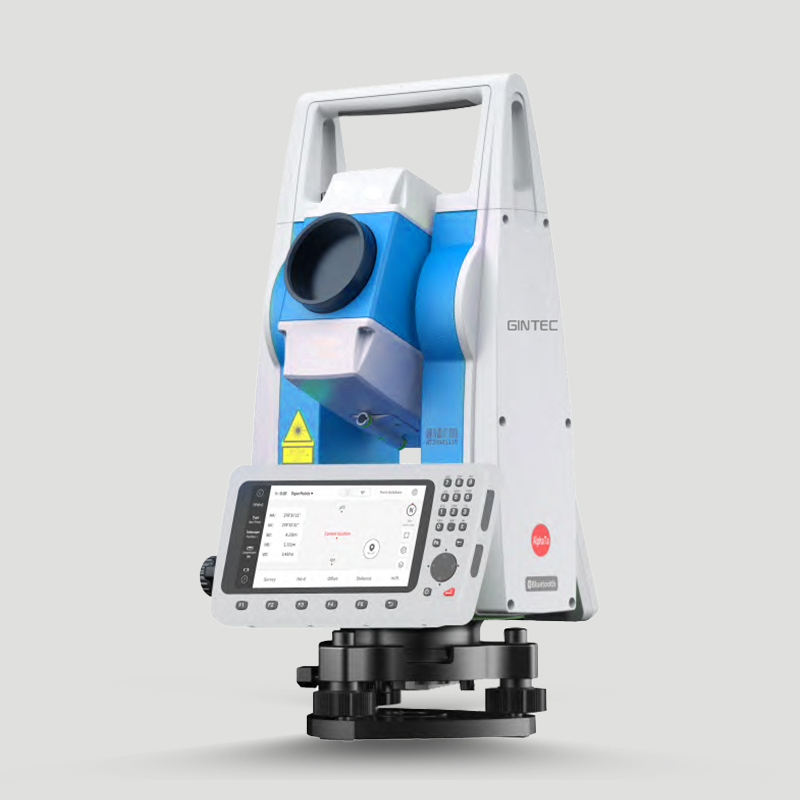

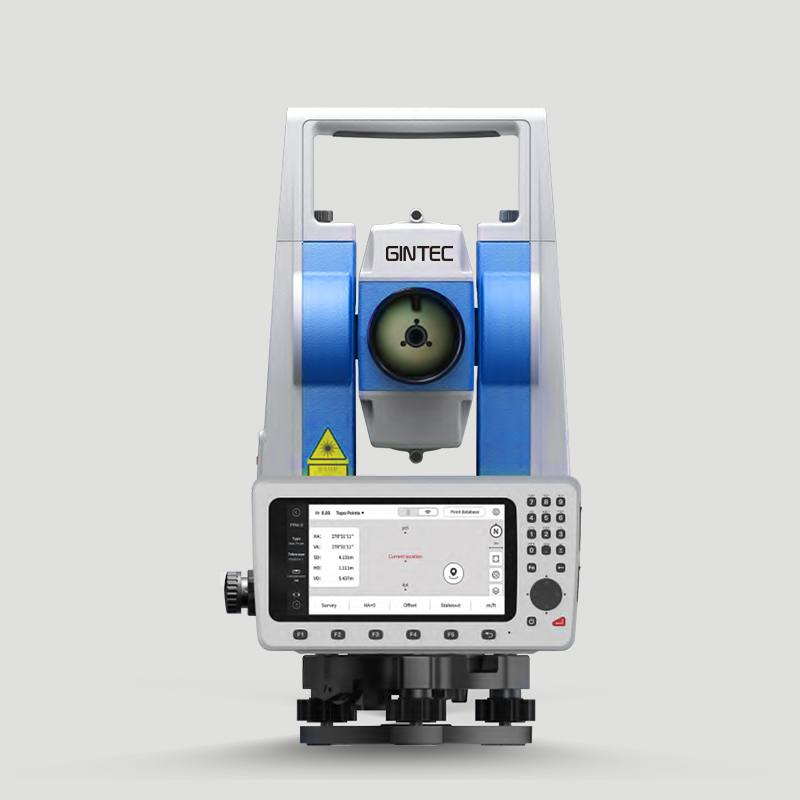

GTS12A Android Total Station
Originated from European optical technology, with special dense bead shaft system, center compensator, new generation measuring ruler and the static absolute encoding disc, GINTEC Android Total Station comes with higher quality, accurate and stable performance.
2"Accuracy +1000m
5.5 Inches Touch Screen

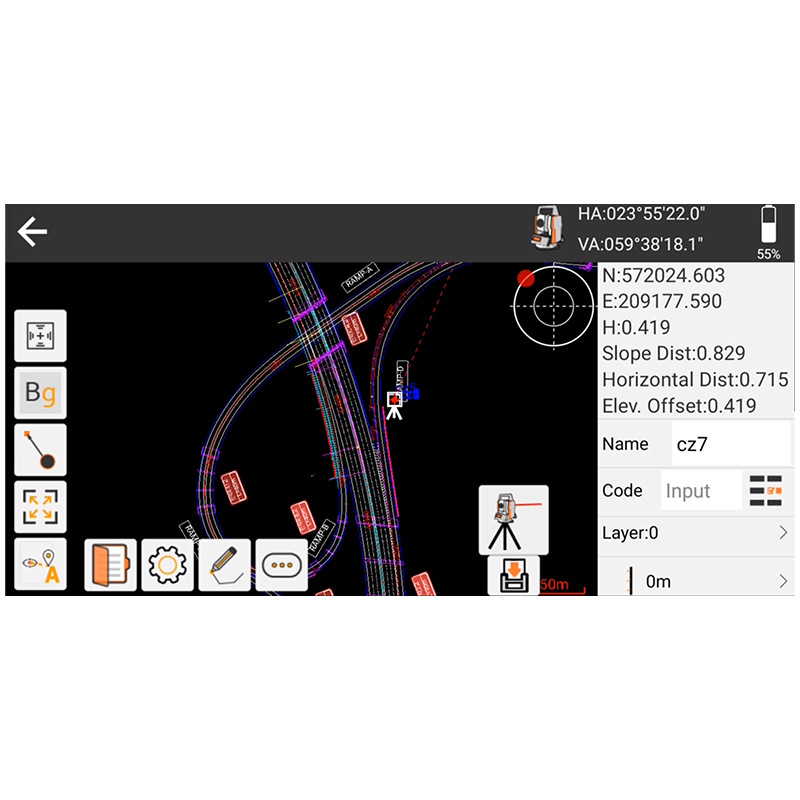

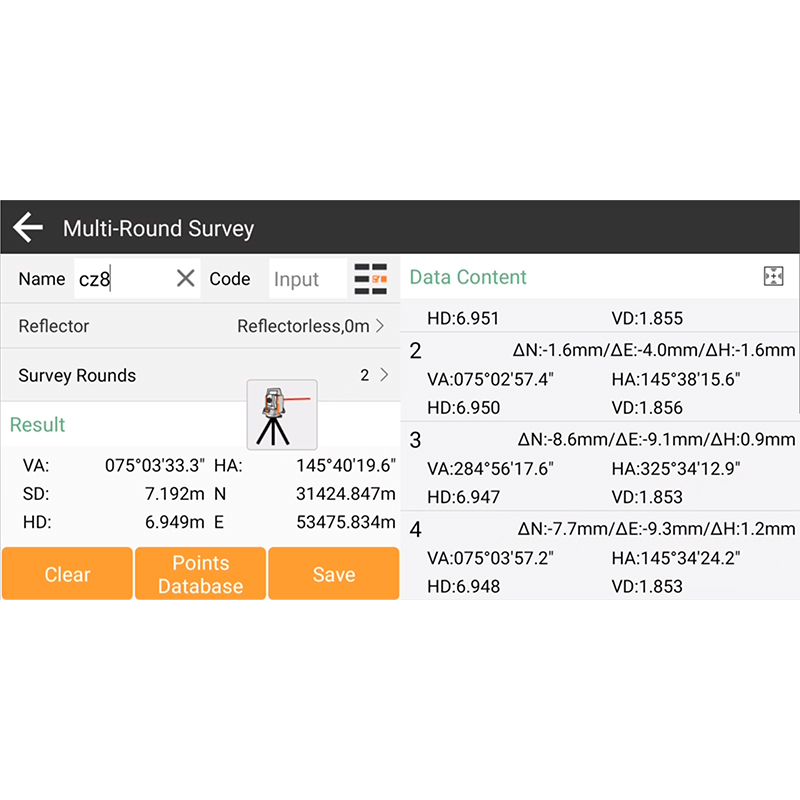

Professional Software
Precise Distance Measuring Technology
GINTEC can achieve fast and accurate distance measurement through built-in eight adaptive high-frequency measuring rulers and advanced phase laser ranging algorithms, meeting the accuracy requirements of various advanced engineering measurements.
Precise Angle Measuring Technology
Self-developed high-precision angle measurement system technology includes coding, high-precision code disc, linear array CCD photoelectric measurement, decoding, redundancy, calibration, multi-sensor combination algorithm and other sub-technologies, providing on-site jobs with high stability and fault tolerance.
Coaxial Comprehensive Compensation
Compensator is located directly above the vertical axis. It can quickly and accurately compensate during rotation. At the same time, CCD is used for precise calibration. The compensation range is up to 4', and the operation efficiency is extremely high
Special Grade Dense Bead Shaft System
Using customized ultra-high-precision grinder precision processing technology, the carefully selected top-grade G3 steel balls are processed through dozens of processes to create a special-grade dense ball shaft system that can meet the stringent requirements of 1″ level instruments.
Strong Protection
With excellent protective performance, powerful precision shafting electronic compensation technology and high redundancy. the angle measurement decoding algorithm allows GTS12A to be used in various extreme engineering environments,making measurements stable and reliable.
| Telescope |
|||
| Image | Right-reading |
||
| Magnification | 30x |
||
| Field Of View | 1°30′ |
||
| Minimum Focus | 1.7m |
||
| Resolution | 2.8" |
||
| AngleMeasurement |
|||
| Accuracy | 2″ |
||
| Reading System | Absolute Encoders |
||
| Minimum Reading | 1″ |
||
| Distance Measurement |
|||
Measuring |
Non-Prism | 1000m |
|
| Reflector | 2000m |
||
| Single Prism | 4000m |
||
| Single Prism | ±(2mm+2×10-6×D) |
||
| Accuracy |
Non-Prism | ±(3mm+2 ×10-6×D) |
|
| Reflector | ±(3mm+2 ×10-6×D) |
||
| Time | Precision: 0.7s Fast: 0.5s Tracking: 0.3s |
||
| Minimum Display | 0.1mm |
||
| Compensator |
|||
| Compensator Type |
Dual axis |
||
| Compensator Range | ±4′ |
||
| Compensator Resolution | 1″ |
||
| Level Vial Sensitivity |
|||
| Tubular Level |
30″/2mm |
||
| Circular Level | 8′/2mm |
||
| Laser Plummet |
|||
| Accuracy |
1.5mm@1.5m |
||
| Wavelength | 635nm |
||
| Safety | Class2 |
||
| Output Power | 0.7-1.0nw |
||
| Panel |
|||
| Screen | 5.5''semi transparent reflective touch screen |
||
| Key |
x26 | ||
| Backlight | Support | ||
| Power | |||
| Battery | Type | 7.4V 3400mAh*2 Built-in Li-ion | |
| Working Time |
Angle Measuring | Single Screen 20h | Double Screen 12h |
| Distance+Angle Measuring | Single Screen 12h | Double Screen 8h | |
| Environment | |||
| Operating Temperature |
-20℃ ~ +50℃ | ||
| Storage Temperature | -30℃ ~ +55℃ | ||
| Water/Dust Proof | IP54 | ||
| L*W*H(cm) | 22*18.7*37 | ||
| Weight | 6.2/6.1kg(With/Without Battery) | ||
*The above technical parameters are for your reference.The company reserves the right to change the design and planning of the product based on the actual product.
