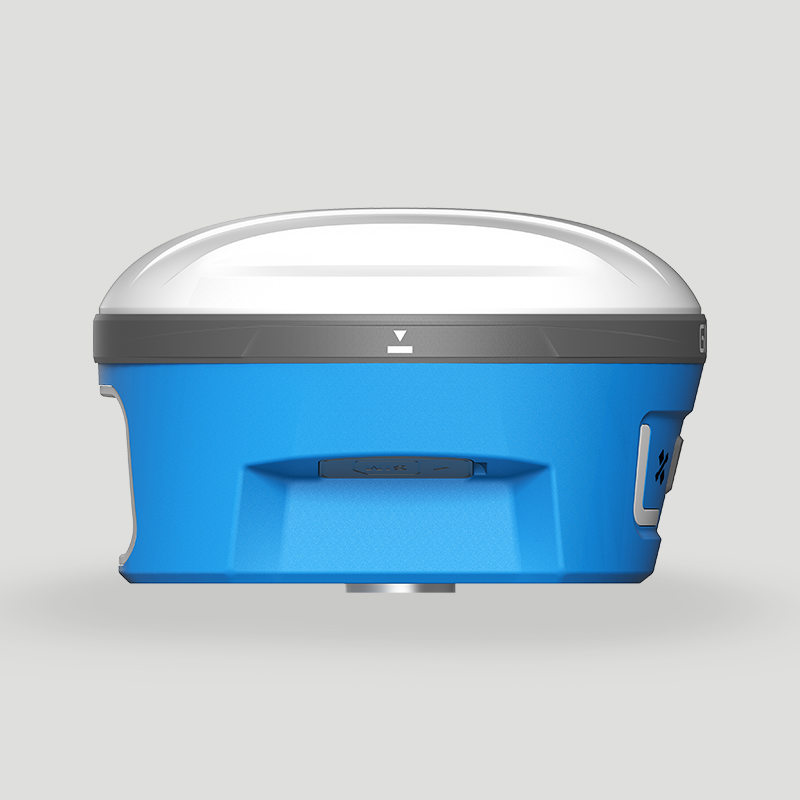

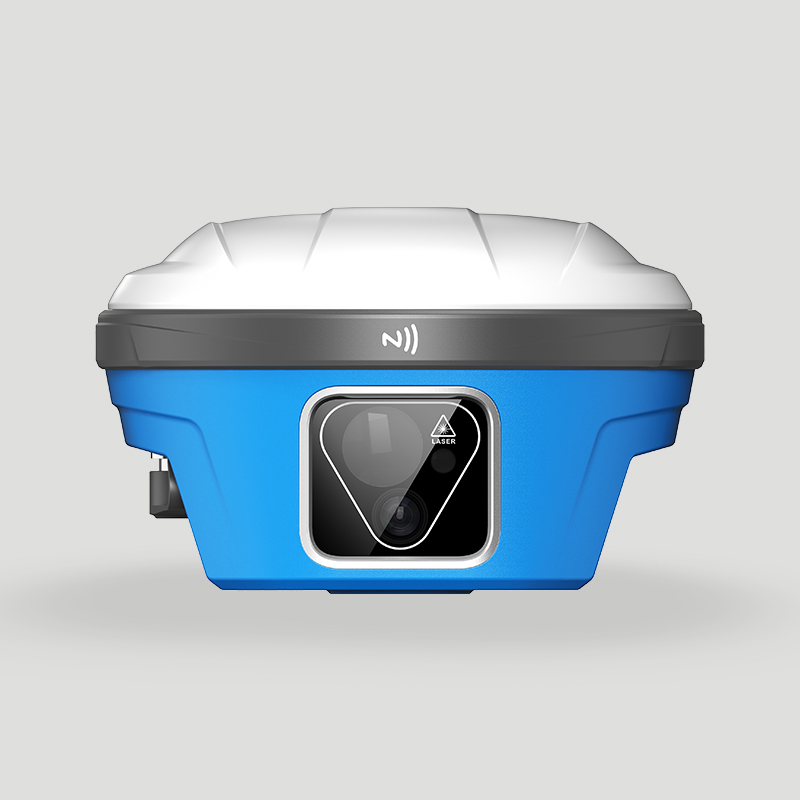

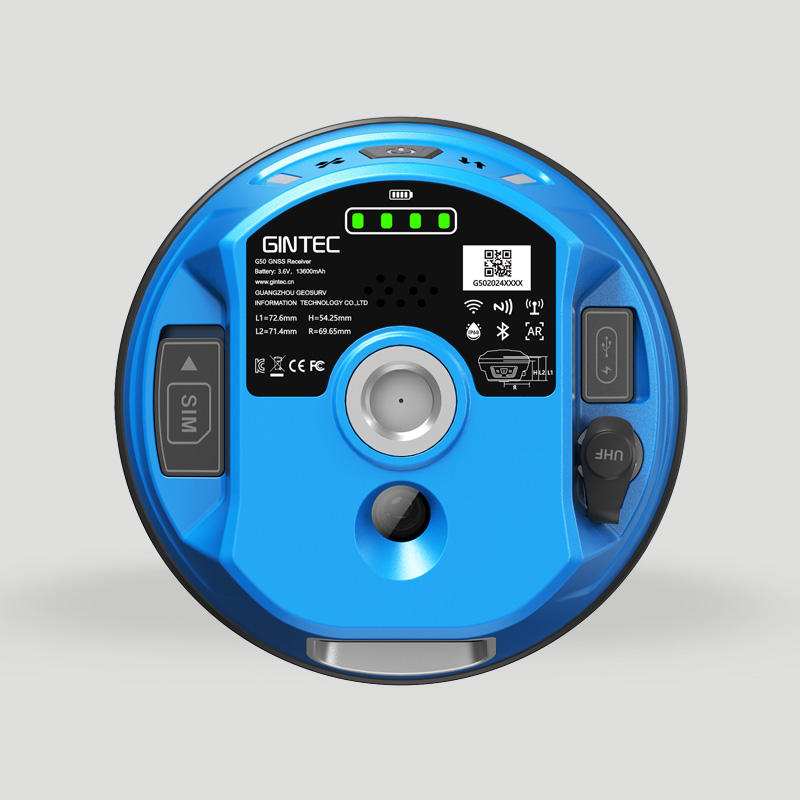

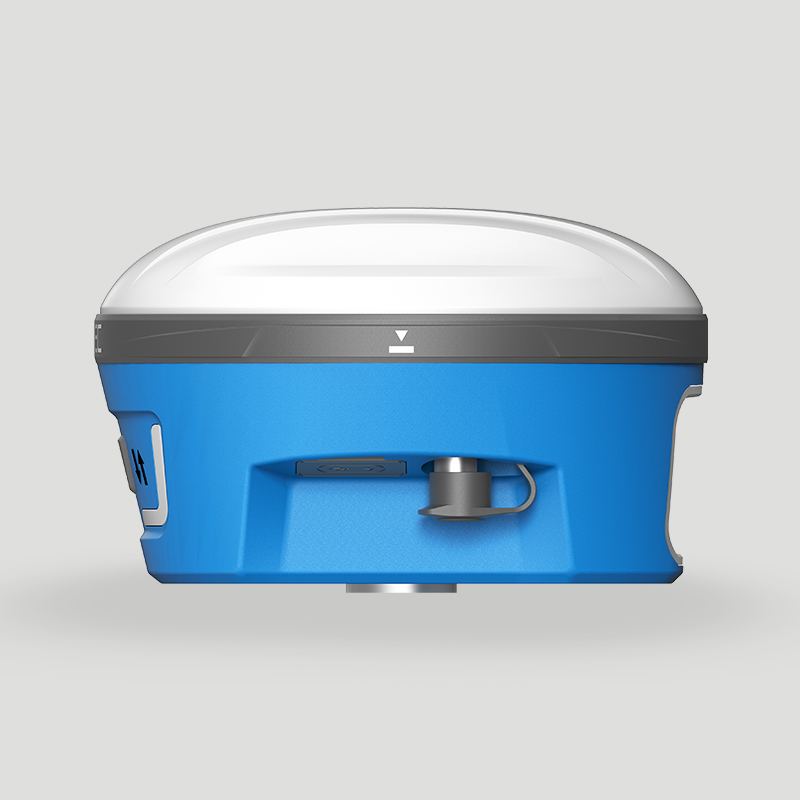

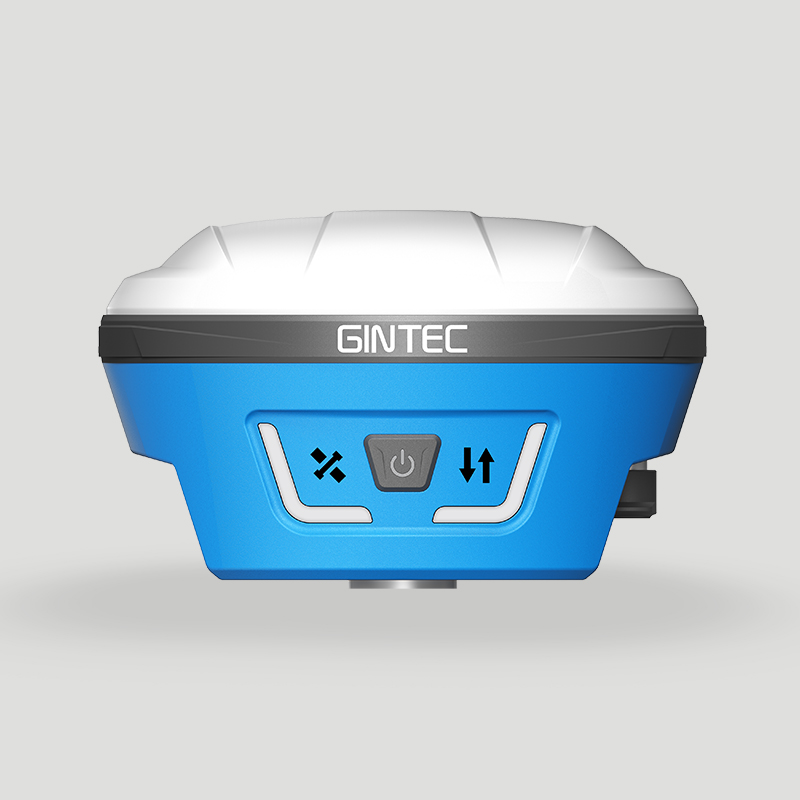

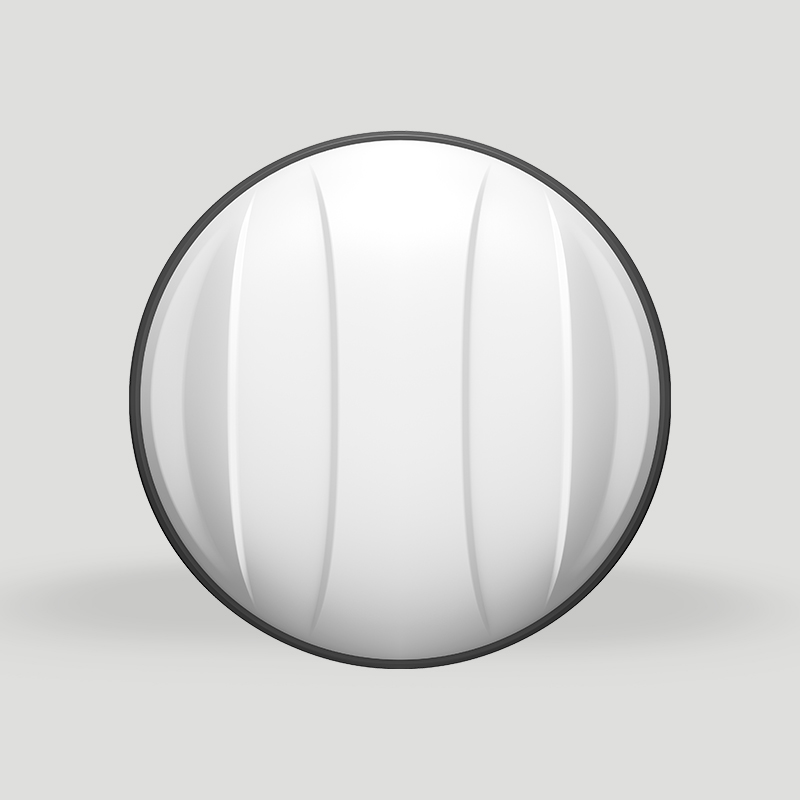

G50
The ultimate Solution for Precision Laser Measurement
The G50 is a brand new high-performance laser GNSS Receiver designed to meet high precision Non-contact Positioning. With cutting-edge technology, the G50 redefines geospatial measurement, providing exceptional precision and versatility. Its advanced integrated laser module, paired with high-definition Stellar Cameras, enables users to easily measure hard-to-reach points, even in challenging conditions.
Experience unparalleled performance and reliability with the G50, the perfect tool for professionals seeking accuracy in every measurement.
Higher Laser Positioning Accuracy and Stability
G50 exhibits small data variation after multiple measurements under the same conditions. It stands out itself by adopting Mileseey's leading edge EDM laser unit & unique Laser-Easy laser ranging algorithm, ensuring both the accuracy and stability of the data.
Clearer & Brighter Laser Spot
Emitting Class 3R red laser, G50 targets the objects in a brighter and clearer laser point, achieving more efficient laser measurement.
Measure any Objects Accurately
With higher-intensity laser emission and superior reflectivity, G50 maintains stable ranging results in measuring objects, regardless of their colors and materials.
| Positioning | |
| Channels | 1408 |
| GPS | L1CIA,L1C,L2P(Y),L2C,L5 |
| GLONASS | G1,G2,G3 |
| BDS | B11,B21,B31,B1C,B2a,B2b |
| GALILEO | E1,E5a,E5b,E6 |
| QZSS | L1,L2C,L5,L6 |
| NAVIC(IRNSS) | L5 |
| SBAS | L1C/A |
| PPP | B2B-PPP | E6-HAS |
| Data Update Frequency | 50HZ |
| Positioning Frequency | 1Hz 2Hz 5Hz 10Hz 20Hz 50Hz |
| Cold Start Time | <12s |
| lnitialization Time | <5s |
| lnitialization Confidence | >99.9% |
| Measurement Accuracy | |
| Static Mode Accuracy | H:+2.5mm+0.5ppm V:+5.0mm+0.5ppm |
| Single Point Solution Accuracy | H:1.5m V:2.5m |
| Differential Solution Accuracy | H:0.4m V:0.8m |
| RTK Accuracy | H:+8.0mm+1ppm V:+15.0mm+1ppm |
| Time Accuracy | 20ns |
| Tilt Measurement Accuracy | ≤2.5cm within 120° |
| Power | |
| Battery Life | Static 20h,Rover 16h,Base 10h |
| Power Supply | Built-in Li-ion 9V/2A MAX18W 3.6V_13200mAh |
| Physical Properties | |
| Shell Material | Magnesium-Aluminum Alloy |
| Weight | 990g |
| Dimensions | Φ135*90mm |
| Button | Power Button |
| Indicator Lights | Satellite Signal LightData Transmission Light, Current Battery Light |
| Laser - Easy | |
| Type | Class 3R, Red |
| Range | 0.05-49.99m By Daylight 0.05-99.99m By Moonlight |
| Distance Accuracy | 2mm |
| Tracking Measurement | 2Hz |
| Final Accuracy | <2cm within 5m <3cm within 10m |
| System | |
| Operating System | Linux |
| Memory | 8G |
| Data Transmission | 4G/Bluetooth/WIFI/Radio |
| Bluetooth | V5.0,BLE |
| WIFI | 802.11a/b/g/n |
| Radio Power | 1W |
| Radio Frequency | 410-470MHZ |
| Air Baud Rate | 19200，9600，4800 |
| Supported Protocols | Gintec Work,TrimTalk450s(T),TrimMark Ill,SOUTH,PCC-EOT,Hi-target, Satel, Farlink, etc. |
| Supported Languages | Chinese，English,Polish.Turkish,Korean,Indonesian.Spanish,Telugu, Russian, etc |
| Camera | |
| Number of Lenses | 2 |
| Front Lens Field of View | 83.4° |
| Front Sensor Pixel | 2 Mega Pixel |
| Front Camera Focal Length | 5m |
| Front Sensor Resolution | 1920*1080 |
| Bottom Lens Field of View | 83.4° |
| Bottom Sensor Pixel | 2 Mega Pixel |
| Bottom Camera Focal Length | 2m |
| Bottom Sensor Resolution | 1920*1080 |
| Environmental Adaptability | |
| Operating Temperature | -30℃~+65℃ |
| Storage Temperature | -40℃~+80℃ |
| Water and Dust Resistance Rating | IP68 |
| Operating Humidity | 99.9% non-condensing |
Laser Staking-out
By integrating the latest IMU, algorithms, and EDM characteristics, G50 supports real-time laser staking-out for difficult measurement points, ensuring accuracy, efficiency and ease of use.
HD Stellar Camera
Adaptive exposure adjustment under different lighting conditions + IR Filter, it is more suitable for dark vision usage, effectively filtering infrared light and significantly improving nighttime shooting results..
G-FIX Correction Outage Technology
Extending FIX solution up to 10mins
Reducing downtime waiting to re-establish RTK corrections
Up To 120° Tilt Within 2.5cm Accuracy
The use of fourth-generation measurement technology ensures the G50 can still get fixed for tilt measurement work at even 120°.
GALILEO HAS/BDS PPP Service Supported
HAS provides free high-precision PPP correction services on the Galileo E6-B signal to improve real-time user positioning performance.
BDS PPP provides free BDS high precision PPP correction services within its coverage area.
Augmented Reality (AR)
Cutting-edge dual-camera system significantly enhances accuracy and guidance during measurement and staking out processes.
