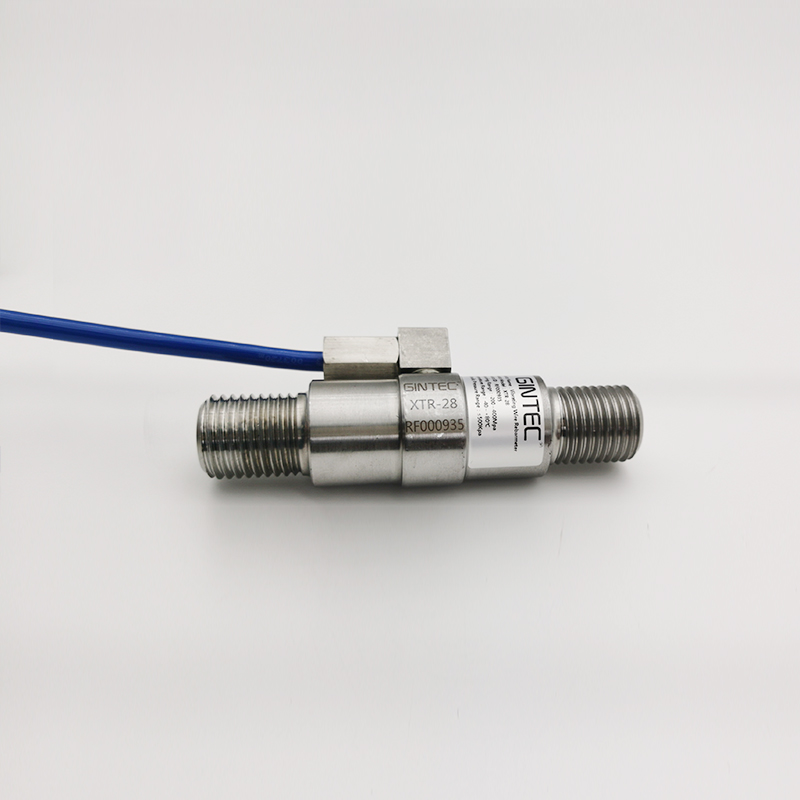

Vibrating Wire Rebarmeter
Vibrating Wire Rebarmeter is suitable for long-term buried in the hydraulic structure or other concrete structures, measuring the structure of the steel stress, and can be synchronized with the measurement of the temperature of the buried point; add supporting accessories can be composed of rockbolt dynamometer, bedrock stress gauge, and other instruments to measure the stress.
描述
| Specifications | R-16 | R-18 | R-20 | R-22 | R-25 | R-28 | R-32 | R-36 | |
| Reinforcement Diameter | 16 | 18 | 20 | 22 | 25 | 28 | 32 | 36 | |
| Area of steel sleeve | 2.01 | 2.54 | 3.14 | 3.80 | 4.90 | 6.30 | 8.05 | 10.20 | |
| Strain-Measuring Range | Stretch | 400Mpa | |||||||
| Compress | 200Mpa | ||||||||
| Steel Sleeve Length | 40~80mm | ||||||||
| Resolution | <0.025%F.s | ||||||||
| Resolution | <0.025%F.s | ||||||||
| Temperature Range | -40~+80℃ | ||||||||
| lemperature Sensitivity | 0.1°C | ||||||||
| Temperature Measurement Accuracy | 土0.5°C | ||||||||
| Measurement Accuracy | >1Mpa | ||||||||
| Measurement Accuracy | >50MQ | ||||||||
