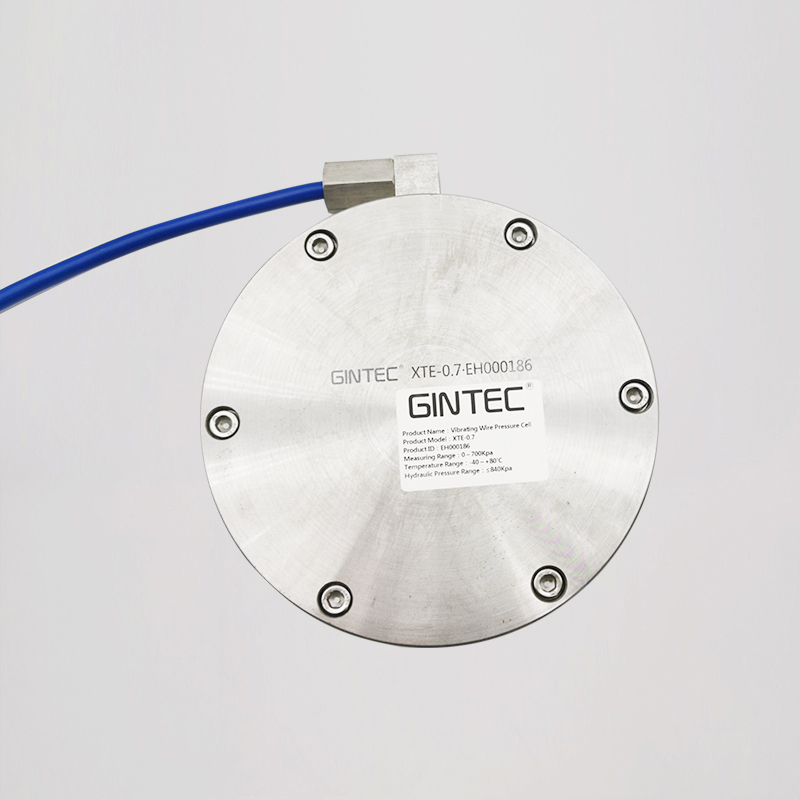

Vibrating Wire Pressure Gauge is suitable for long-term measurement of earth pressure inside structures such as earth-rockfill dams, embankments, slopes, roadbeds, etc. It is an effective monitoring equipment to understand the internal earth pressure and temperature changes inside the structure under test.
| Specifications | XTE series |
| Max Outside Diameter | 156mm |
| Bearing Disc Height | 26mm |
| Measuring Range | 0-2Mpa |
| Resolution | <0.025%F.S |
| Fitting Precision | ~0.1%F.S/0.5%F.S |
| Temperature Range | -40~+80℃ |
| Temperature Sensitivity | 0.1℃ |
| Temperature Measurement Accuracy | ±0.5℃ |
| Hydrostatic Pressure Tester | Measuring range 1.2x |
| Insulation Resistance | >50MQ |
