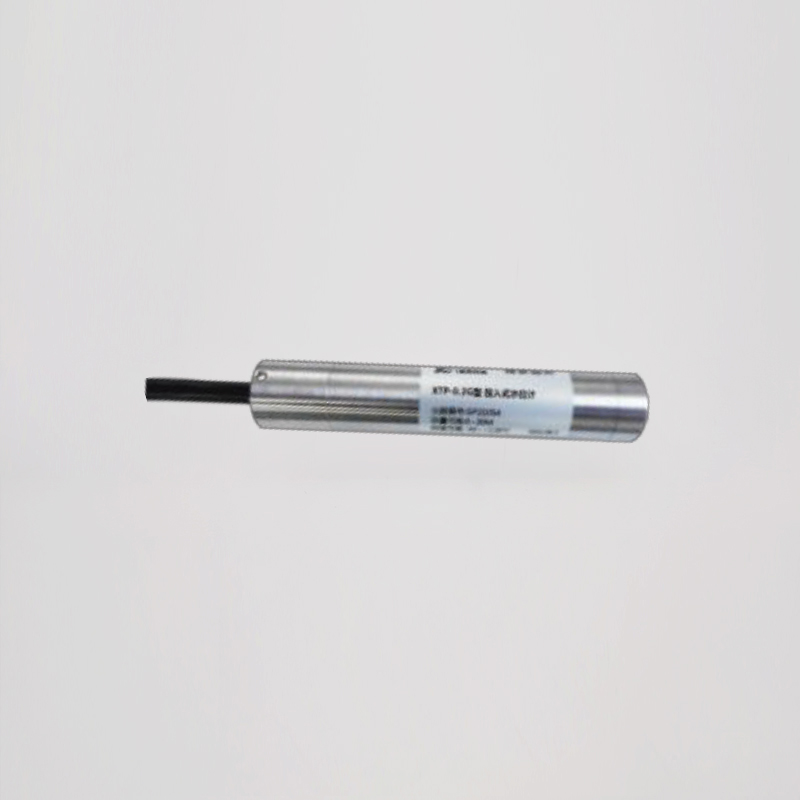

Water lever Meter
Water lever Meter is suitable for long-term deployment in hydraulic buildings or geotechnical slopes of the pressure measuring tube, measuring the amount of change of water level. It is an intelligent sensor, and the output signal is RS485 physical quantity, temperature, air pressure automatic compensation.
描述
| Specifications | XTP-0.2G | XTP-0.35G | XTP-0.7G |
| Max Outside Diameter | 24mm | ||
| Length | 131mm | ||
| Measuring Range | 0-20 | 0-35 | 0-70 |
| Resolution | <0.02%F.S | ||
| Sensibility | <0.1%F.S | ||
| Temperature Range | -40~+120℃ | ||
| Temperature Accuracy | +0.1℃ | ||
| Temperature Sensitivity | +0.5℃ | ||
| Output | RS485 | ||
| Hydrostatic Pressure Tester | Measuring range 1.2x | ||
| Insulation Resistance | >50MQ | ||
