Vibrating Wire Embedment Strain Gauge

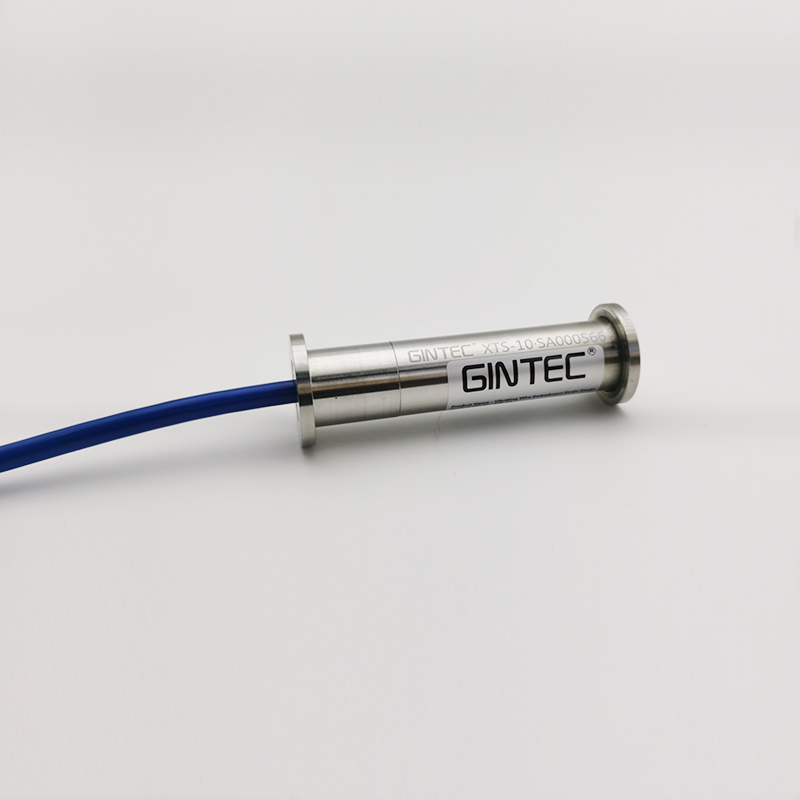

The XTS-10F type vibration string surface strain gauge is suitable for long-term installation on the surface of hydraulic structures or other structures, to measure the strain on the surface of the structure, and can simultaneously measure the temperature at the installation point.
The vibration string surface strain gauge has a small elastic modulus and good synchronization with the measured structure, and the measurement will not interfere with the original stress field. It has an embedded design with an all-stainless steel structure, is simple to install and reliable to use, and can be recovered and reused. The vibration string surface strain gauge has smart recognition functions.
描述
| Specifications and Model | XTS-10F | ||
| Parameter Dimensions | Measurement Gage Length L | 100mm | |
| Effective Diameter d | 22mm | ||
| End Diameter D | 24mm | ||
| Performance Parameter | Strain Measurement Range | Tension | 1500με |
| Compression | 1500με | ||
| Sensitivity k | ≤0.5με | ||
| Fitting Accuracy | ≈0.1%F.S/0.5%F.S | ||
| Temperature Measurement Range | -40℃～+80℃ | ||
| Temperature Sensitivity | ±0.1℃ | ||
| Temperature Measurement Accuracy | ±0.5℃ | ||
| Correction Coefficient b | ≈13με/℃ | ||
| Elastic Modulus Eg | 300MPa～800MPa | ||
| Water Pressure Resistance | ≥0.5MPa | ||
| Insulation Resistance | ≥50MΩ | ||
Note: Frequency analog F＝HZ2×10-3
