Tilt Meter SDM30

Tilt meter SDM30 is a biaxial Tilt meter developed by HUASI, which integrates data acquisition, wireless communication and GPS positioning. Its main function is to monitor the static inclination of objects in real time.

相关产品




Product Features:

1.Tilt meter SDM30 adopts integrated design, available to monitor the static inclination of objects.



2.Highly Integrated

Integrated with high-performance 4G communication antenna, GPS positioning antenna, and Bluetooth antenna. It supports both wireless (4G global network) and wired (485) operation modes.



3.Dual-axis Sensor

High-precision sensor, excellent performance, precision assurance.



4.Outdoor Capability

The housing is made of corrosion-resistant and anti-aging aluminum alloy material, providing strong protection and durability. It has excellent outdoor adaptability and meets the IP67 protection standard, ensuring worry-free performance in wind and rain.



5.Built-in High-Capacity Battery

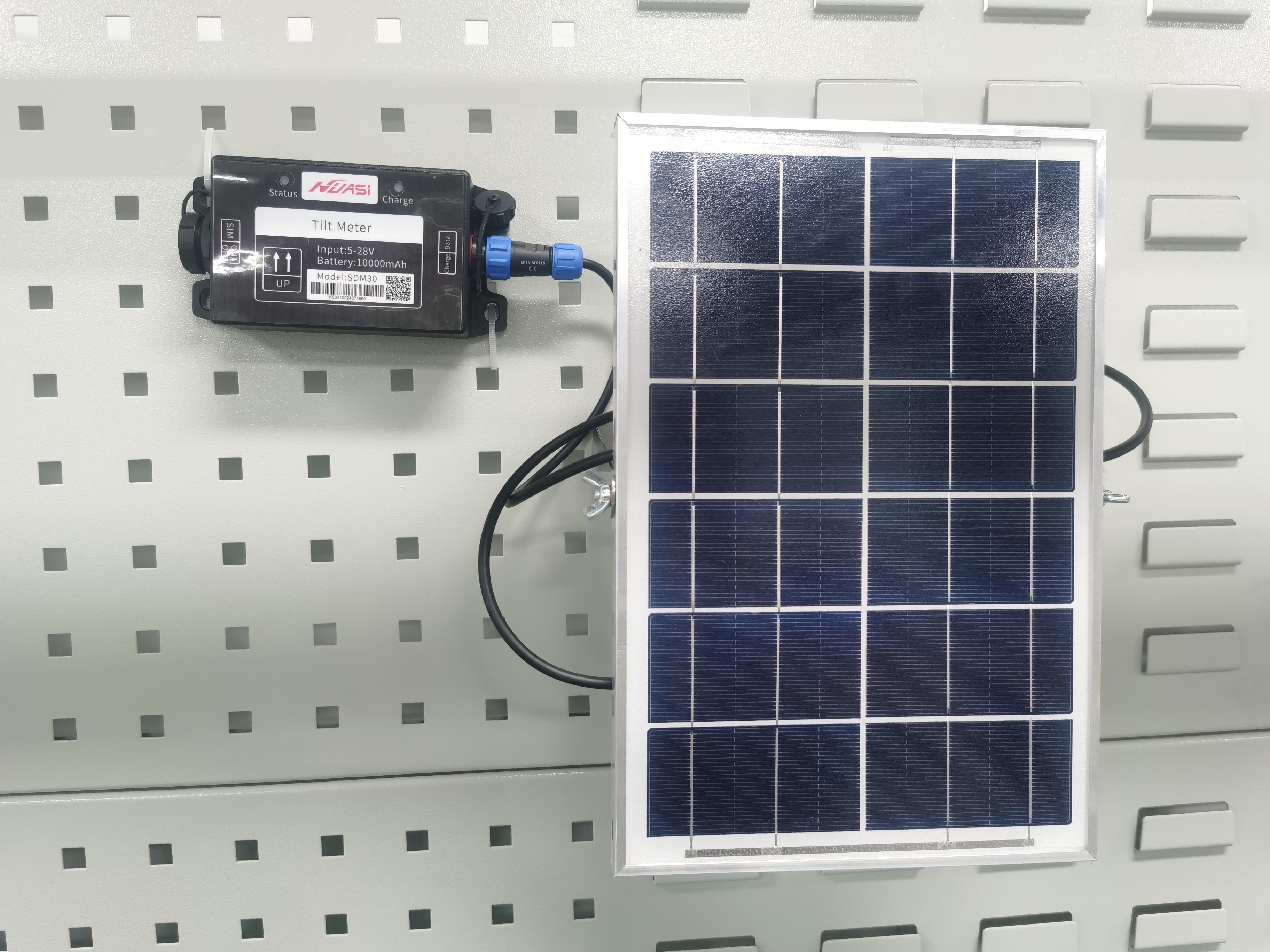

Long battery life ensurance, convenient and fast operation. It also supports solar power input for charging, without the need for additional solar controllers. It can be used  immediately upon installation, meeting long-term monitoring needs.



6.Ultra-Low Power Design

It employs a deep sleep mode with super low power consumption for scheduled tilt angle data collection. When the sensor detects tilt, it can immediately wake up, collect data, and report it. By combining dynamic and static  data collection, it achieves optimal power consumption and efficiency.



7.Simplified Remote Debugging

Connected to the HUASI Cloud Platform, it allows to do flexible configuration.

Namely, it can be set to high-frequency mode to meet monitoring requirements during critical periods, or set to low-frequency mode with long intervals to greatly increase battery life.



8.Data Security

By using encrypted transmission protocols to ensure the security of data collection and transmission, providing real-time encryption protection for sensitive information.



9.Adjustable Alarm Angle Value

After setting the alarm angle threshold, the device will be activated and immediately upload alarm information when an object exceeds the safe angle value.



10.Anti-Theft Tracking

When the alarm angle threshold is triggered, the uploaded alarm information includes positioning data, serving as an anti-theft tracking feature.

Tilt meter SDM30 Parameter Table

No.

Types

Indicators

1

Model

SDM30

2

Measurement Range

±30°

3

Accuracy

0.005°

4

Measurement axes

X、Y

5

Resolution

0.001°

6

Zero-point Temperature Drift

±0.0004°/℃

7

Temperature Compensation

-20℃~70℃

8

Communication

Wireless: 4G(LTE)

Wired: 485

9

Supply Voltage

5-28V

10

Battery Capacity

10000mAh

11

Continuous Operating Time

1h/Collection: Half a year

1d/Collection: 3 years

12

Shock Resistance

5000g

13

Housing Material

Aluminium Alloy

14

Waterproof

IP67

15

Operating Temperature

-20℃~70℃

16

Storage Temperature

-40℃~70℃

17

GPS Positioning Accuracy

<2.5M

18

Dimensions

L133*W67.5*H35.5 mm
