Array Flexible Inclinometer

Array Flexible Inclinometer

Array Flexible Inclinometer offers automated, real time deformation monitoring solution for tunnels, bridges, dams, mines, landslides and foundation pits, etc. Array Flexible Inclinometer is composed of array deformation sensor, data acquisition instrument and early warning cloud platform. It collects and transmits data with 4G network. Once finishing installation and power on, data can be transmitted to the cloud platform automatically. Users can check data in the cloud platform in real time.

描述

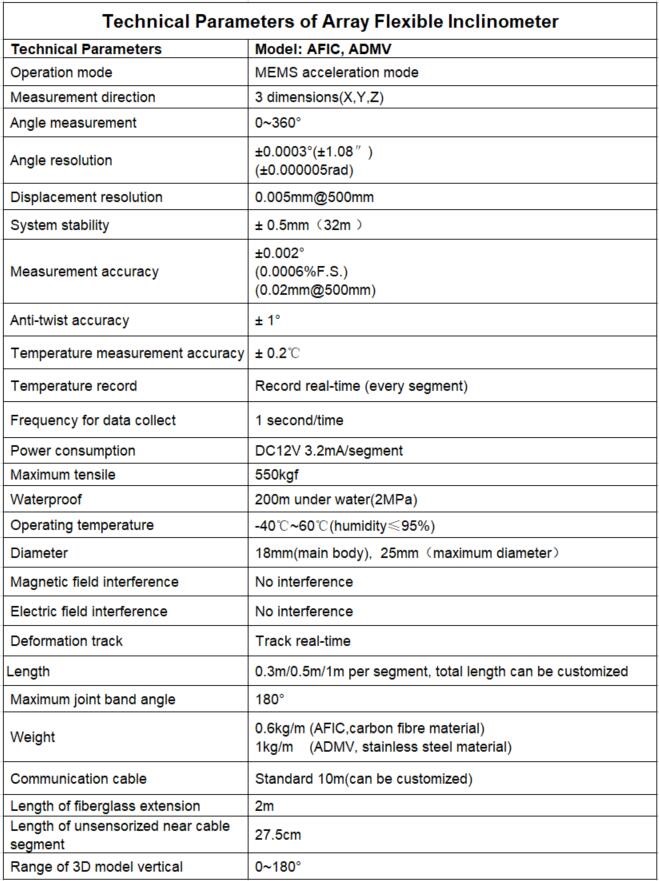

SPECIFICATIONS

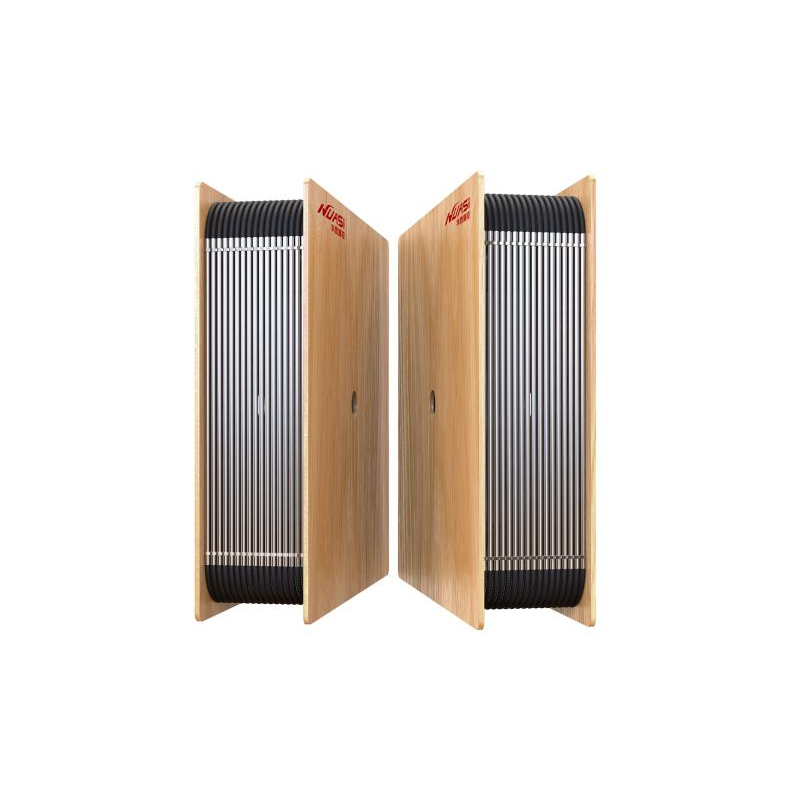

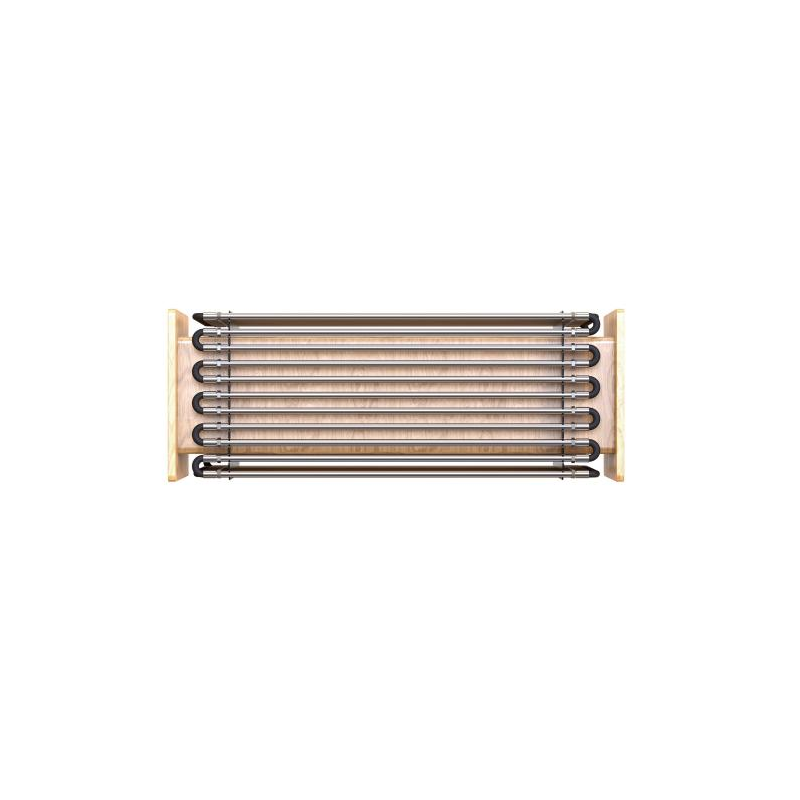

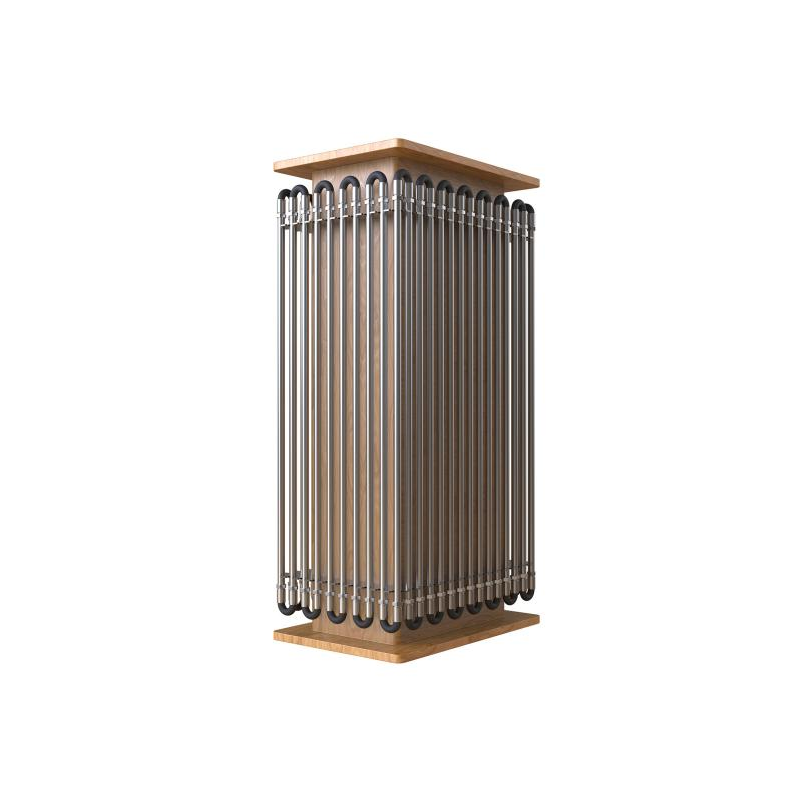

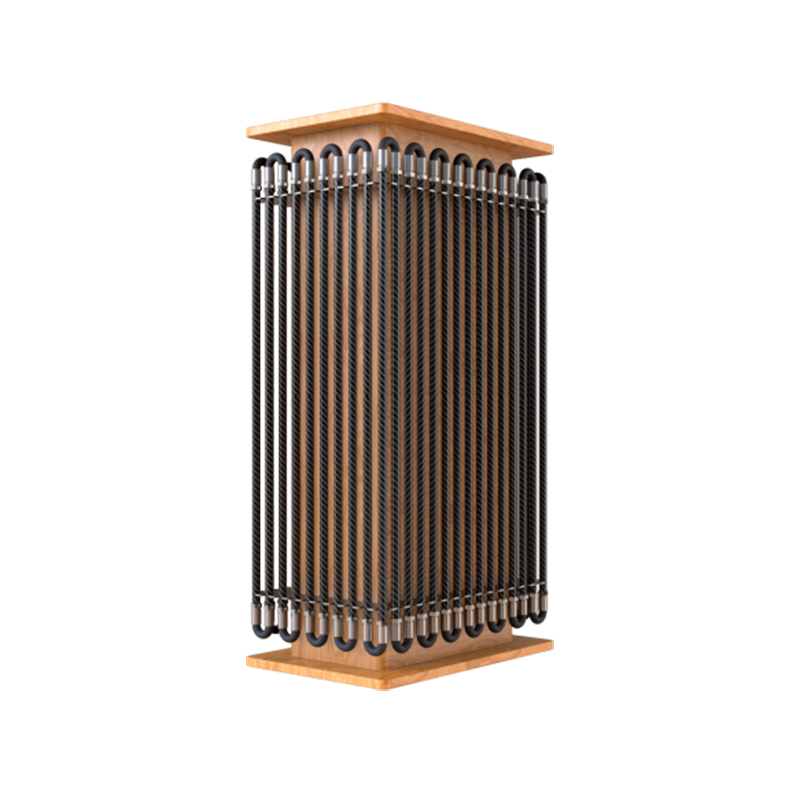

PACKAGING

Array Flexible Inclinometer Deformation Monitoring System
Array Flexible Inclinometer offers automated, real time deformation monitoring solution for tunnels, bridges, dams, mines, landslides and foundation pits, etc. Array Flexible Inclinometer is composed of array deformation sensor, data acquisition instrument and early warning cloud platform. It collects and transmits data with 4G network. Once finishing installation and power on, data can be transmitted to the cloud platform automatically. Users can check data in the cloud platform in real time. It’s an advanced smart inclinometer for SHM structural health monitoring, widely used in slope displacement monitoring, bridge settlement monitoring, tunnel convergence monitoring, landslides, and other geotechnical engineering monitoring.

Features and Advantage
Full Automatic: Real-time, Continuity, High Reliability
Array Flexible Inclinometer use 4G internet, it can transmit deformation data in every second. Uses can check the real-time data on web browser.

Ultra-High Accuracy Result:
With MEMS Sensor and highly efficient algorithm, Array Flexible Inclinometer can support 0.5mm/35m result. The angel resolution can reach ±1″, deformation resolution can reach 0.05mm@500mm.

Multiple Application and Easily Install.
Because Array Flexible Inclinometer is highly integrated products, it can be easily installed at any angle and any place. It can support horizontal or vertical monitor data and vibration data. Array can be widely used in geological hazard, dam, subgrade settlement, tunnel convergence, bridge, railway and construction.

Segment Splice Function
This function can realize freely splicing any length to adapt to the depth of boreholes. With this function, the reusability of instrument is greatly improved, helping decreasing much cost.

Intelligent Alarm:
Users can set alarm limit, when the deformation is bigger than limit, can get message or email automatically.
