T100L Radio Module

T100L radios support full-frequency band, forward error correction, channel detection, and radio relay functionality.
It’s compatible with mainstream communication protocols  has obtained major certifications .
T100L supports long-range communication using LORA technology, it’s widely used  such as Surveying and Mapping, RTK , Driving test system, Base station,Precision Agriculture, and other industries.

相关产品




Low power consumption, high sensitivity, wide operating temperature range



Supports forward error correction and channel detection



High reliability

  · 1)--ESD level: contact discharge +/-8KV, continuous 200 times.
  · 2)--The radio will not be damaged regardless of whether the antenna interface is open or shorted.



T100L supports LORA communication:

Long transmission distance, stronger anti-interference capability.



Compatible with mainstream communication protocols



Certified by FCC (United States), CE (Europe), KC (South Korea), IC (Canada), and MIC (Japan)·



All independently developed, supports customization.

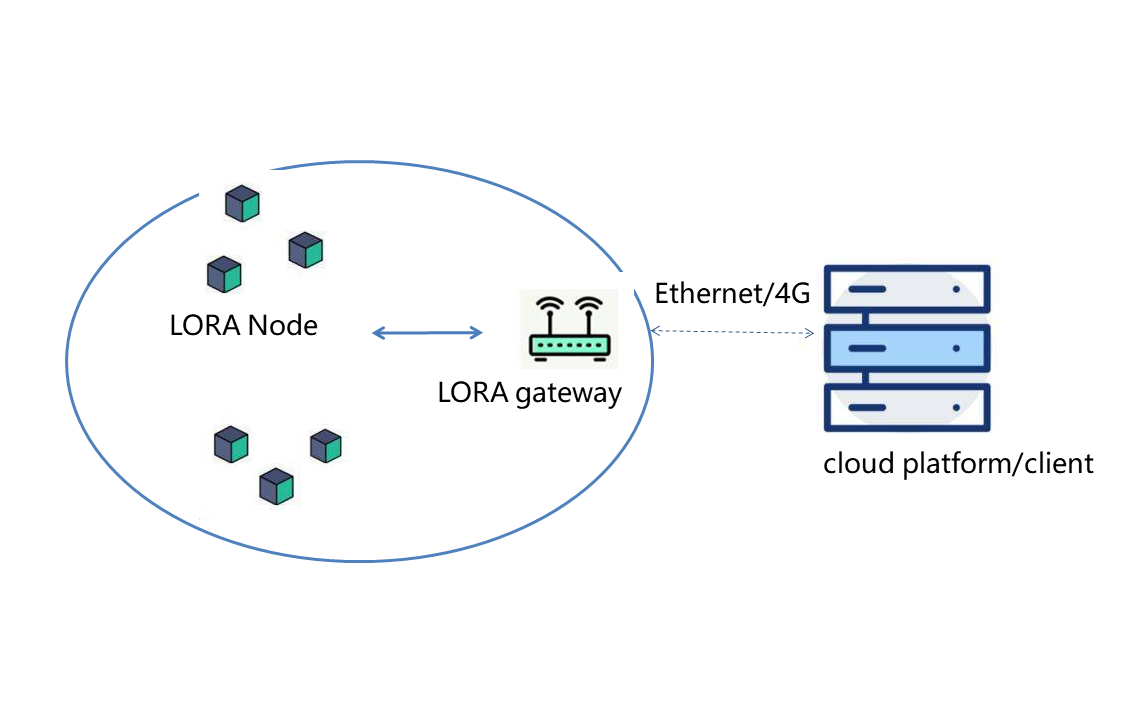

T100L can be used as both a data transceiver and as a LORA node. When functioning as an LORA node, it can be combined with a base station (LORA gateway DTU), cloud platform, and client made a wireless network to enable bidirectional transmission of application data.

   RTK Base station
   Surveying and Mapping
   Driving test system
   Precision Agriculture
   IOT

Frequency

410-470MHz

Bandwidth

12.5KHz/25KHz@other protocols 500KHz@Farlink
Modulation Method

GMSK/4FSK,LORA

Air Data Rate

9600bps,19200bps
Transmit Power

0.5W / 1W / 2W

Receiver Sensitivity

BER < 10E-3:

Better than -118dBm for other protocols at 9600bps

BER < 10E-3:

Better than -128dBm for Farlink

Input voltage  3.3V ±5%(In TX state, do not exceed 3.8V.)
Power consumption,typical   3.0W(TX 1W)  0.45W(RX)
Temperature range -40~+85℃(Work) -45~+90℃(Storage)
Antenna connector IPX or MMCX(50ohm)
Size H x W x D mm 57×36×7mm
Weight  16g
DATA Interface connector 1.27 mm pitch socket
Data speed of serial interface 9600-460800bps default:115200bps
